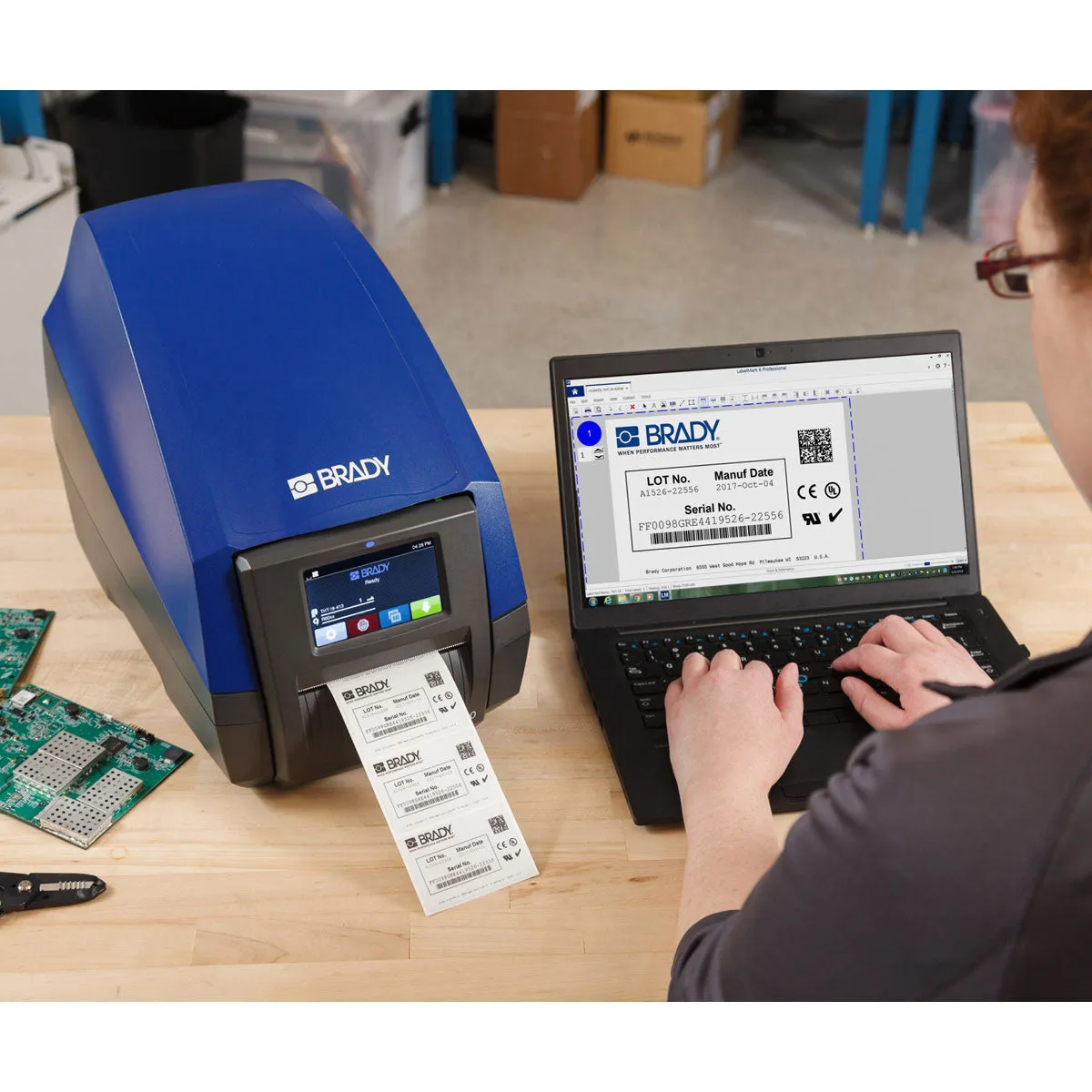

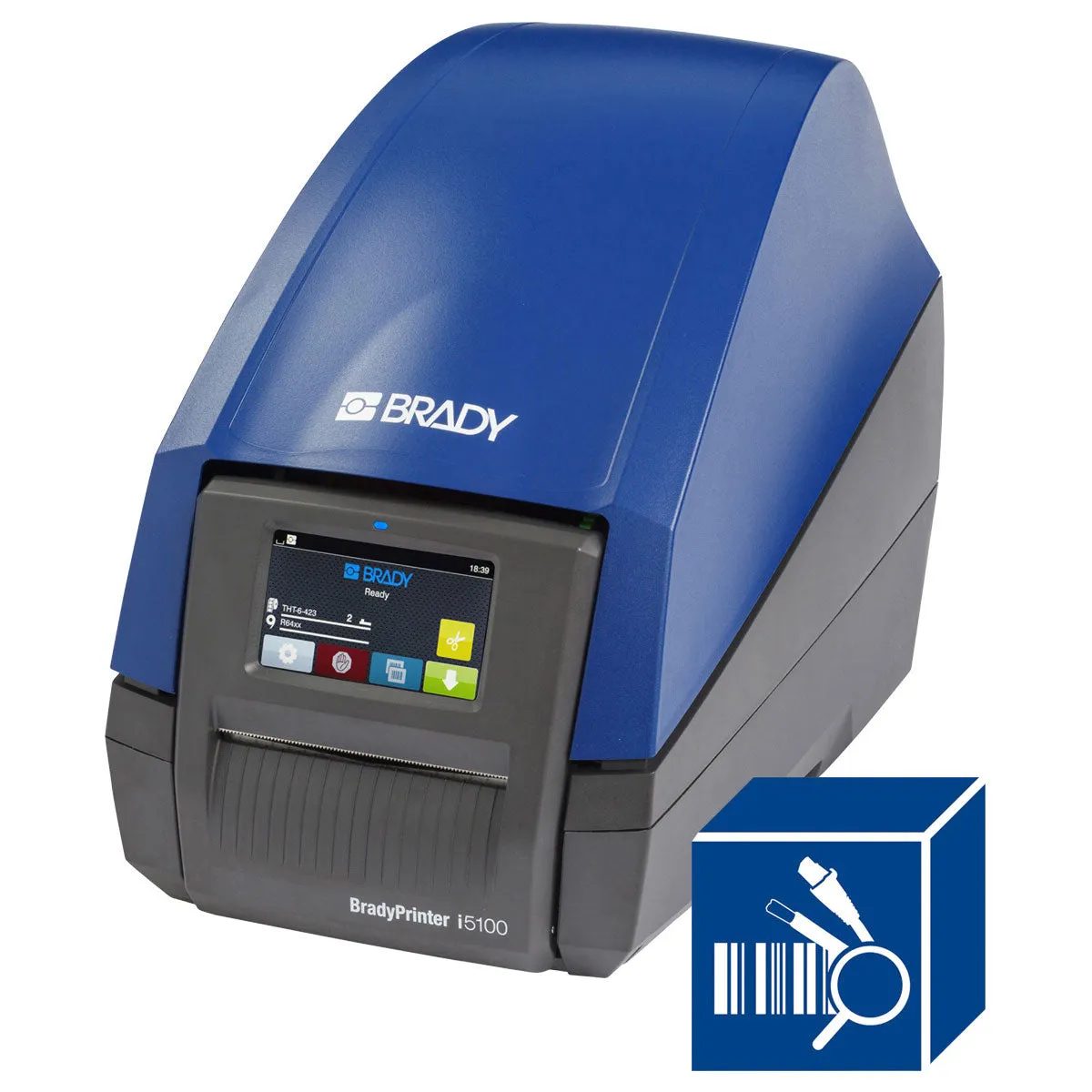

Brady Printer i5100 600dpi Industrial Label Printer with Product and Wire ID Software Suite
Overview
The Brady Printer i5100 Industrial Label Printer provides the fundamental printing capabilities for the high-mix and high-volume work you need to get done every day.
- Change printer settings easily with the intuitive touchscreen
- Complete label set up faster with smart cell technology that allows the materials, printer and software to communicate
- Change out materials quickly with specially designed materials that easily lock into place
- Connect easily with a variety of connection ports
- Keep the printer running smoothly with interchangable rollers
- Ships with Brady Workstation Product and Wire ID Software Suite with built-in templates for fixed text or free-form label design options
- Setup is stress free – Contact our Brady Technical Support Team and we will schedule a free phone setup appointment.
Specifications
| Key Characteristics | ||
| Product Number | 149455 | |
| UPC | 754473605322 | |
| Aerospace, Arc Flash Labels, Asset Tracking, Automotive, Barcode Labeling, Cable & Wire Marking, Circuit Board Marking, Data Center Labeling, Electronics Manufacturing, General & Industrial ID, Government & Defense, Laboratory ID, Laboratory ID - Slide Label, Manufacturing, Military, Panel & Push Button Labels, Panel Manufacturing, Rating Plate ID, Ship/Boat/Marine Industries, Single and Double sided sleeve printing | ||
| UOM | Each | |
| Trade Name | BradyPrinter i5100 | |
| Brand Name | Brady® | |
| Germany | ||
| 8443.32.1050 | ||
| EAR99 |
| Dimensions | Dimensions | 12.5 in H x 9.5 in W x 17.2 in D |
| Height | 12.5 in | |
| Width | 9.5 in | |
| Depth | 17.2 in | |
| Core Diameter | 3 in | |
| Display Size | 2.0 x 3.6 in | |
| Weight | 13.6 lb |
| Material Characteristics | Color | Blue, Gray |
| Product Features | Barcode Labeling, Circuit Board Labeling, Component and Equipment Labeling, Data and Telecommunications Labeling, Electrical Labeling, Inventory and Inspection Labeling, Laboratory Labeling, Wire and Cable Labeling | |
| Bluetooth, Ethernet, Serial RS232, USB 2.0, USB Host | ||
| Cut Options Available | Upgrade to Auto Cutter (through Brady tech Repair) | |
| Cutter Type | None | |
| Display Type | Color LCD Touch Screen | |
| Keyboard Type | None | |
| Media Sensor Type | Black Mark, Gap Sensor, Notch, Ribbon End | |
| Memory | 256 MB RAM, 50 MB IFFS Flash | |
| PC Connect | ||
| PC connected & Stand-alone | ||
| Plug Type | IEC Type B | |
| Power Supply Voltage | 100 - 240 V @ 50 - 60 Hz | |
| Auto Shut-Off / Power Conserve | Yes | |
| User Interface Type | PC, Touch Screen | |
| Battery Type | Lithium-manganese Battery | |
| Operating System | Windows® 10, Windows® 7, Windows® 8, Windows® Server 2012, Windows® Server 2012 R2, Windows® Server 2016 | |
| Side In/Side Out | ||
| Yes |
| Printing Specifications | Yes | |
| Barcode Capability | Barcode Capable | |
| Barcode Symbologies - 2D | Aztec, Data Matrix, GS1 DataMatrix, MaxiCode, MicroPDF417, PDF417, QR code | |
| Barcode Symbologies - Linear | Codabar, Codablock F, Code 128A, Code 128B, Code 128C, Code 39, Code 39 Full ASCII, Code 93, Deutsche Post Identcode, Deutsche Post Leitcode, EAN/UCC 128, EAN/UPC, EAN/UPC Extension 2, EAN/UPC Extension 5, EAN-13, EAN-8, FIM, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Truncated, GS1-128, HIBC, Interleaved 2 of 5, JAN-8, MSI, Plessey, POSTNET, UPC-A, UPC-E, UPC-E0 | |
| Yes | ||
| Color Printing Capability | Single Color | |
| Font Styles | Bitmap Default Font - 12x12 dots, Bitmap Default Font - 16x16 dots, Bitmap Default Font - 16x32 dots, Monospace 821, OCR-A Size I, OCR-B, Swiss 721, Swiss 721 Bold | |
| 5000 | ||
| Maximum Print Speed | 5.9 in/s | |
| Print Resolution | 600 dpi | |
| Print Technology | Direct Thermal, Thermal Transfer | |
| Media Sensor Adjustment | Yes | |
| On Screen Indicators | Bluetooth Status, Data Reception, Data Recording, Digital Clock, Ethernet Status, Print Mode: Brady or Standard, Ribbon and label part number recognition, Ribbon Remaining, SD Memory Card inserted, Sensor: selection and positioning, Supply Remaining, USB Memory Stick inserted, USB Slave Status, WLAN Field Intensity |
| Compatibility | 2HT-, 3HT-, 3PS-, PS-, PSL-, THT-, THTCLP-, THTEP-, THTFP-, THTFT-, XTHT- | |
| Label Material Types | Direct Thermal Paper, FreezerBondz™ Polyester, Heat-shrink Polyolefin, High Temperature Heat-shrink Polyvinylidene Fluoride Sleeve, Metallic, Non-metal Polyester, Metallized Polyester, Metallized Polyester with Polyester Overlaminate, Nylon Cloth, Paper, Polyester, Polyester with Polyester Overlaminate, Polyethylene Foam Laminate Polyester, Polyimide, Polyolefin, Polypropylene, Polyvinylfluoride, Repositionable Paper, Self-laminating Polyester, Self-laminating Vinyl, StainerBondz™ Polyester, Static Dissipative Polyester, Tamper-evident Metallized Polyester, Tamper-evident Polyester, Tamper-resistant Metallized Vinyl, Tamper-resistant Vinyl, Vinyl, Vinyl Cloth, Water-indicating Polyester/Paper Laminate | |
| Continuous & Die-Cut Materials Supported | Continuous and Die-cut | |
| Custom Media Parts Available | Yes | |
| Custom Labels Available | Yes | |
| Maximum Label/Tape Width | 4.16 in | |
| Maximum Print Width | 4.16 in | |
| Maximum Printed Label Length | 6.6 ft | |
| 0.20 in | ||
| Minimum Liner Width | 0.36 in | |
| Maximum Liner Width | 4.4 in | |
| Software Compatibility | Brady Workstation, Windows based driver for 3rd party software use |
| What's Included | Includes | (1) Auto-Detect Roll Holder, (1) Brady Workstation Product and Wire ID Suite (BWS-PWID-EM), (1) BradyPrinter i5100 Printer 600dpi (149455), (1) Product CD with Manuals & Drivers, (1) Ribbon Takeup Spindle, (1) U.S. Power Cord, (1) USB Cable |
| Warranty | 5 Years | |
| Warranty (North America) | 5 Years |
